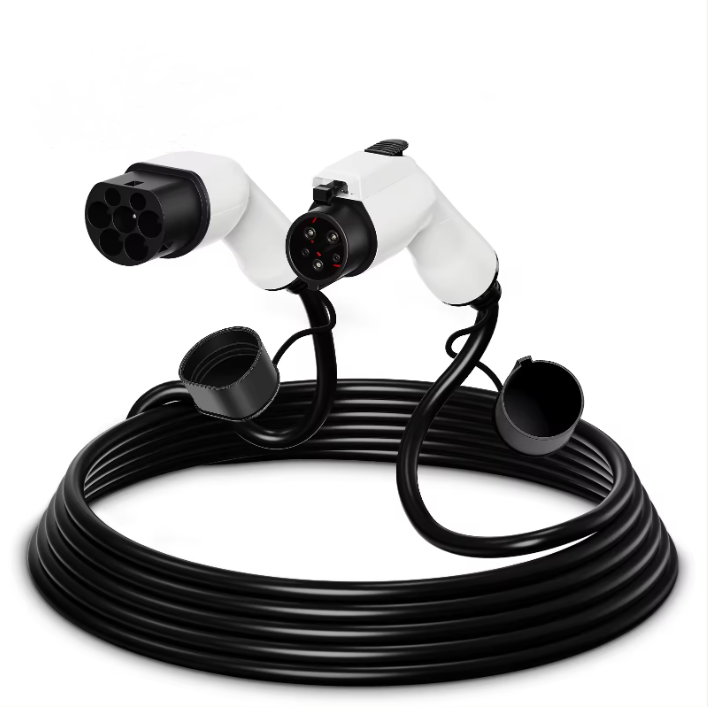

3.6KW - 22KW EV Charging Cable Type 2 To SAE J1722 Type 1 1 / 3 Phase 16A 32A

  • 1
  • 2
  • 3

Brand Name : Evoyage

Model Number : EV32AP

Place of Origin : Sichuan, China

MOQ : 1 pieces

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, Paypal, Alipay, Cash

Supply Ability : 10000 Piece/Pieces per Week

Delivery Time : 7-15 Working days

Packaging Details : 40.9 x 40.1 x 10.1 cm; 4 Kilograms

Product Name : EV Charger Cable 3.6KW-22KW Type2 To SAE J1722 Type 1 1/3 Phase 16/32A AC 220V-250V Male To Female EV Charging Cable

Phase : 1/3 Phase

Application : Electric Vehicle Car Charging

Rated current : 16/32A

Rated voltage : AC220V-250V,AC380V

Standard : SAE J1772/Type 1

Mechanical life : 10000 Times' Plug In/off

Function : EV Car Charger

Material : Thermoplastic

Warranty : 1 Year

Contact Now

EV Charger Cable 3.6KW-22KW Type2 To SAE J1722 Type 1 1/3 Phase 16/32A AC 220V-250V Male To Female EV Charging Cable

3.6KW - 22KW EV Charging Cable Type 2 To SAE J1722 Type 1 1 / 3 Phase 16A 32A

3.6KW - 22KW EV Charging Cable Type 2 To SAE J1722 Type 1 1 / 3 Phase 16A 32A
Green World, Sauber Future

This electric car charging cable is from EVOYAGE. With professional R & D teams, production assembly lines and testing instrument, EVOYAGE is continuously committed to providing consumers with high quality and reliable products and promote the development of EV charging industry.

Follow these steps for easy charging

1.Park the car at the charging point and turn off the engine.

2.Insert the Type 2 male plug end into the charger’s outlet socket. Be sure to push firmly so the pins can fully locked.

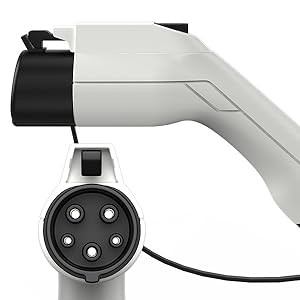

3.Insert the Type 1 (SAE J1772, 5 pins) female plug end into your car’s inlet socket. Be sure to push firmly so the pins can fully locked.

4.Lock your car and the cable if the car supports.

5.After charging is complete, remove the plug from the car firstly and then remove the male plug from the charging unit.

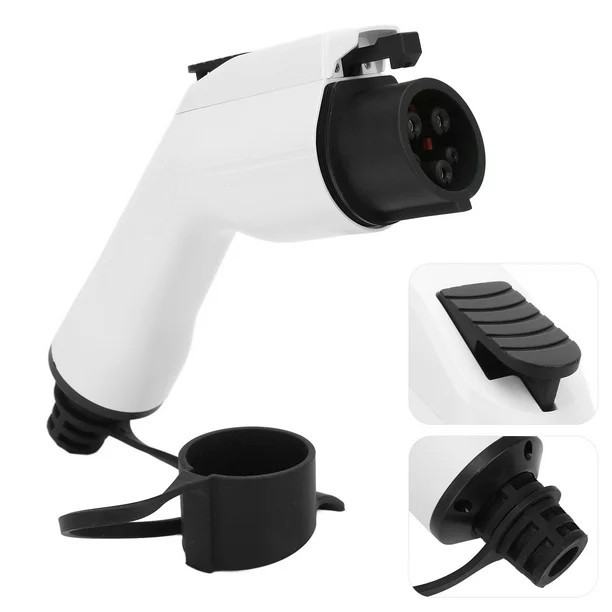

6.The grip size is designed according to ergonomic principles, making it easier and more comfortable for the user

3.6KW - 22KW EV Charging Cable Type 2 To SAE J1722 Type 1 1 / 3 Phase 16A 32A

High Compatibility

Compatible with all Type 1 (SAE J1772, 5pins) electric vehicles & plug- in hybrid vehicles.

Fast Reliable Charging

Copper alloy silver-plated contacts, superior conductivity

Protective

Waterproof and Dustproof protective cover for the charger hand

Type2 to Type1 EV Charging Cable is a prime solution for effortlessly charging your electric vehicle. The cable is fabricated with a durable 5X2.5mm^2+1X0.5mm^2 robust cable that satisfies the IEC 62196-2 EU European standard. Additionally, the plug’s body design has a small angle of horizontal bending, facilitating a simpler plugging and unplugging experience. The TPU material is highly resistant to bending, thereby ensuring a longer service life for the charging cable.

Buyer Reading

Compatible Cars - Please check your car's charging port before you order. If the port has 7 holes, it is a Type 2 car and needs a Type 2 to Type 2 charging cable. If the port has 5 holes, it needs a Type 2 to Type 1 charging cable.

Compatible Charging Units - Please use it on Type 2 (IEC 62196-2) socketed charging point which has 7 holes.

Plugged Directly - This charging cable must always be plugged directly into a charge point socket and can't be used as an extension or an adapter to a tethered lead.

Meet IEC 62196-2 (Mennekes, Type 2) EU European standard

Meet SAE J1772 2017 (Type 1) North American standard

Product Specifications

Rated current: 16/32 A (Single Phase/Three Phase)
Rated voltage: AC220V-250V,AC380V
Insulation resistance: >1000MΩ ,DC500V
Mechanical life: unloaded plugged:>10000
Waterproof grade: IP65(mating)
Plastic shell: thermoplastic plastic
Conductor: copper alloy, silver plated surface
Working environment ℃: -30℃- +50℃
Terminal temperature rise: <50K
Insertion and Extraction Force: <100N
Cable Specification: 5X2.5mm^2+1X0.5mm^2;5X6.0mm^2+1X0.5mm^2

3.6KW - 22KW EV Charging Cable Type 2 To SAE J1722 Type 1 1 / 3 Phase 16A 32A 3.6KW - 22KW EV Charging Cable Type 2 To SAE J1722 Type 1 1 / 3 Phase 16A 32A 3.6KW - 22KW EV Charging Cable Type 2 To SAE J1722 Type 1 1 / 3 Phase 16A 32A 3.6KW - 22KW EV Charging Cable Type 2 To SAE J1722 Type 1 1 / 3 Phase 16A 32A
Type 2 to Type 1, 32A, 5m Type 2 to Type 1, 32A, 5m Type 2 to Type 1, 16A, 5m Type 2 to Type 1, 16A, 5m
Connector Type Type 2 to Type 1 Type 2 to Type 1 Type 2 to Type 1 Type 2 to Type 1
Max. AC Charging Current 32A 32A 16A 16A
Max. Output 22kw 7.2kw 11kw 3.6kw
Cable Length 5mters 5meters 5meters 5meters
Phase Single Phase Three Phase Single Phase Three Phase
