CCS Combo 2 To CCS Combo 1 DC EVSE Adapter 150A 1000V Electric Car Charging Adapter

Product Categories
Chengdu Sixpence Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

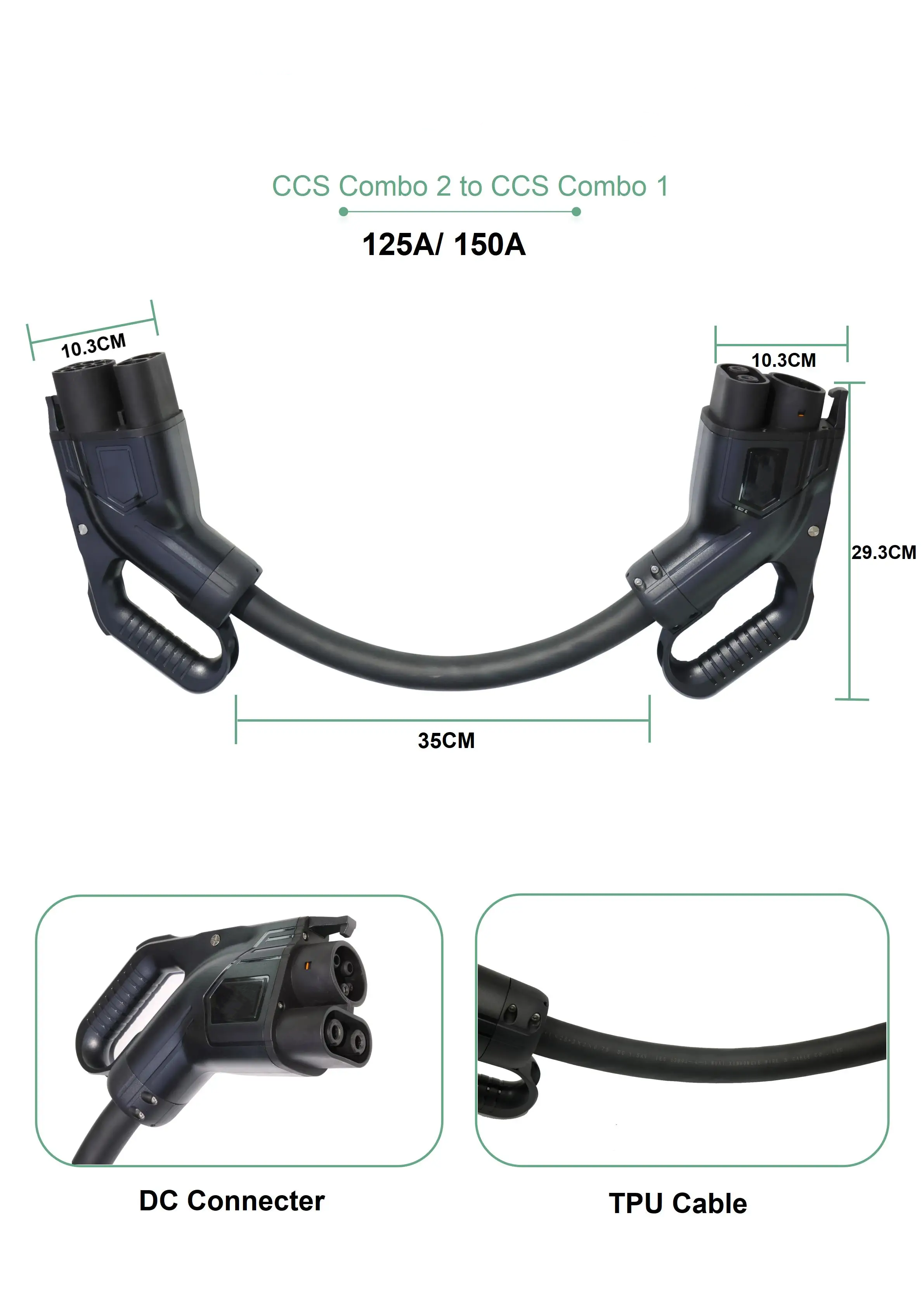

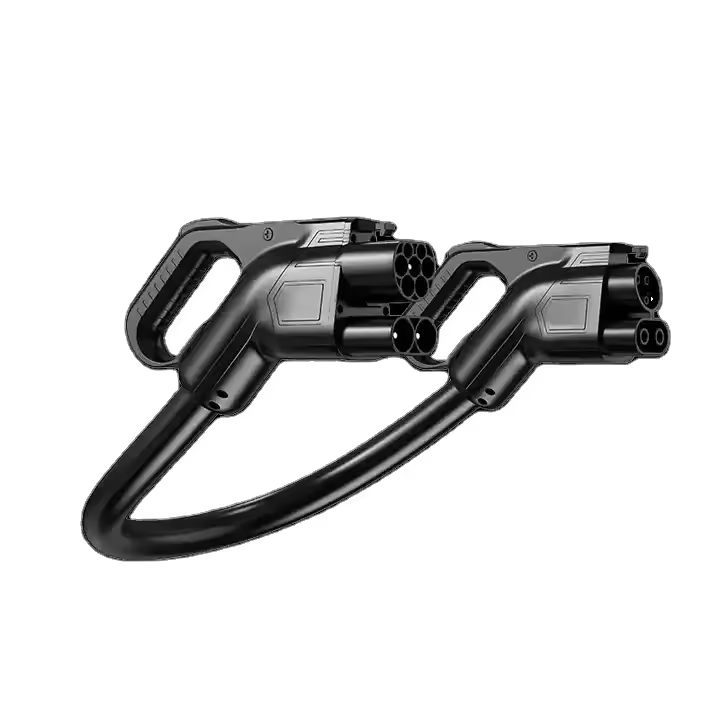

CCS Combo 2 To CCS Combo 1 DC EVSE Adapter 150A 1000V Electric Car Charging Adapter

MOQ : 1 pieces

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, Paypal, Alipay, Cash

Supply Ability : 10000 Piece/Pieces per Week

Delivery Time : 7-15 Working days

Packaging Details : 35*26*10(CM)；2.0KG

Brand Name : Evoyage

Model Number : EVCCS12AD

Place of Origin : Sichuan, China

Product Name : CCS Combo 2 to CCS Combo 1 DC EV Adaptor with 0.35M Cable 150A 1000V DC Fast Charging CCS2 to CCS1 Connector for J1772 Cars

Rated current : 150A

Rated voltage : 1000V

Standard : CCS2 To CCS1

Contact Now

CCS Combo 2 to CCS Combo 1 DC EV Adaptor with 0.35M Cable 150A 1000V DC Fast Charging CCS2 to CCS1 Connector for J1772 Cars

CCS Combo 2 To CCS Combo 1 DC EVSE Adapter 150A 1000V Electric Car Charging Adapter

EV Adaptor 150A 1000V CCS2 to CCS1 Adapter for DC Fast Charging Station

  • Rated current:150A
  • Rated voltage: 1000V DC
  • Rated Power: 150KW
  • Certifications:CE/ TUV/RoHS
  • IP protection class: IP 55
  • Product description: If you have an electric car with CCS1 DC inlet socket (US Standard EV) , but the public chargers around you are CCS2, How can you get your car charged easily? This CCS2 to CCS1 EV charger adapter can

CCS Combo 2 To CCS Combo 1 DC EVSE Adapter 150A 1000V Electric Car Charging Adapter

Model selection and the standard wiring

  • 150A 1AWG*2C+6AWG*1C+20AWG*6C

CCS2 to CCS1 Adapter Features​

  • This CCS2 to CCS1 adapter is safe and easy to use
  • This EV Charging Adapter with built-in thermostat prevent over-heat case damage to your car and adapter
  • This 150KW ev charger adapter is with self-lock latch prevent plug-off while charging.
  • The max charging speed for this CCS2 fast charging adapter is 150KW, fast charging speed.

​

The Application Scenarios

​


If you have a electric car with CCS combo 1 also known as CCS1/(US Standard) but the charging stations around you are with CCS2(European Standard) How can you charge your car? This CCS2 to CCS1 adapter can help you. this 150A 1000V 150KW CCS2 to CCS1 EV Charging Adapter is designed to help CCS1/US standard cars to charge on CCS2/European Standard charging stations.

CCS Combo 2 To CCS Combo 1 DC EVSE Adapter 150A 1000V Electric Car Charging Adapter

Product Type

Connector Type Rated Type DC
Shell Material Themoplastic Color Black
Contact Material Copper Alloy Contact Finish Silver Plating
Application Adapter

Electrical

Rated Current Rated Voltage 1000V
Contact Resistance 0.5MΩ MAX Insulation Resistance
Power 150kW Withstand Voltage 2000V

Standards and Specifications

Charging Standards IEC 62196-3

Environmental

Flammability UL94 V-0 Ingress Protection IP55
Operating Temperature -30℃~50℃

Mechanical

Mating Cycles ≥10000
