IP54 Wall Mounted Car Charging Station 30KW / 40KW Multiple AC DC EV Charger

  • 1
  • 2

Brand Name : Evoyage

Model Number : EVCCS12AD

Place of Origin : Sichuan, China

MOQ : 1 pieces

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, Paypal, Alipay, Cash

Supply Ability : 10000 Piece/Pieces per Week

Delivery Time : 7-15 Working days

Packaging Details : 850*313.5*1610mm 80KG/85KG

Product Name : Wall Mounted DC And AC Multiple CCS/Tesla/CHAdeMO/GBT EV Charger Station 30KW/40KW

Rated Current : 80A/120A

Rated Voltag : 50-500V DC

Standard : CCS/Tesla/CHAdeMO/GBT

Contact Now

Wall mounted DC and AC multiple CCS/Tesla/CHAdeMO/GBT EV Charger Station 30KW/40KW Wall mounted DC and AC multiple charger station Fast Charger

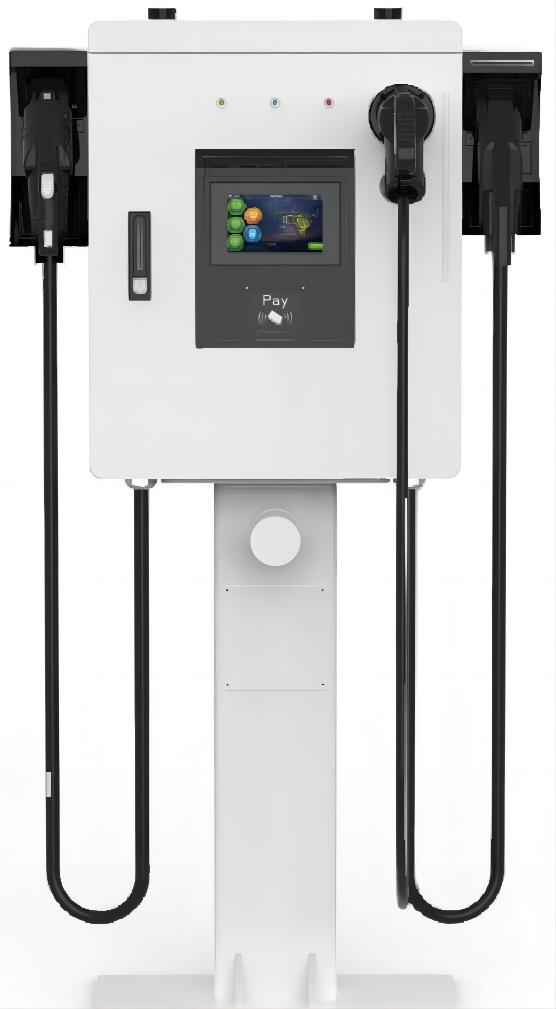

IP54 Wall Mounted Car Charging Station 30KW / 40KW Multiple AC DC EV Charger

Wall mounted DC and AC multiple charger station 30KW/40KW Fast DC Charger

  • Rated voltage:DC 50-500V
  • Input Rating:380Vac± 15%
  • Output power range:30KW/40KW
  • HMI:7inch touch display (Android)RFID
  • Certification:CE,ROHS,TUV,CSA,UL,IEC

Wall-mounted 30/40kW DC charger is designed for various short-time parking scenes, such as shopping malls,parking lots, hotels, tourist attractions, etc.lt is a quick charging station able to charge all
compatible electric vehicles.Users only need to plug the charging connect to the vehicle and DC charger,it will immediately start the charging process.

FEATURES:

Compatible Universality

  • One charger with multiple outputs, simultaneously charging
  • Two DC connectors: Ccs and CHAdeMO, with output up to 40KW
  • One AC connector: Type 2, with output up to 22kW

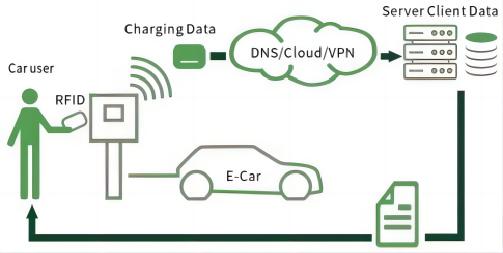

Intelligent control
  • Ethernet/4G/WiFi communication all supported
  • OCPP communication protocol
  • Multiple payment systems:QR code,RFlD reader,POS machine

High quality electrical components

  • Verify by CE and TUV
  • IP54 and lK10 corrosion protection

Flexible functional optionse

  • Wall-mounted/Floor stand
  • RFlD/plug and charge

Wall mounted DC and AC multiple charger station Features

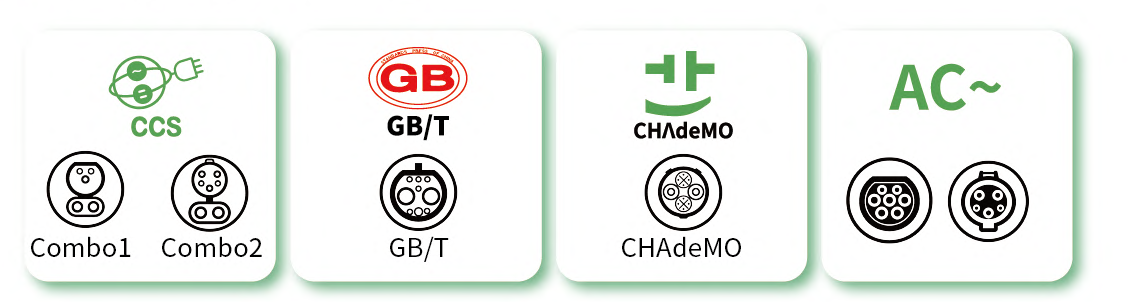

The Multiple output of 30KW/40KW Wall-mounted Fast Charger can choose different connectors, such as CCS1, CCS2, CHAdeMO, GB/T . It can Fast-charge any CCS,CHAdeMO,GB/T vehicle. With high charging efficiency charging less than 1 hour. The charger is safe and intuitive to use with emergency stop button. Optional network integration(OCPP or proprietary protocol) for customer to choose, so it is very convenient for you to charging.

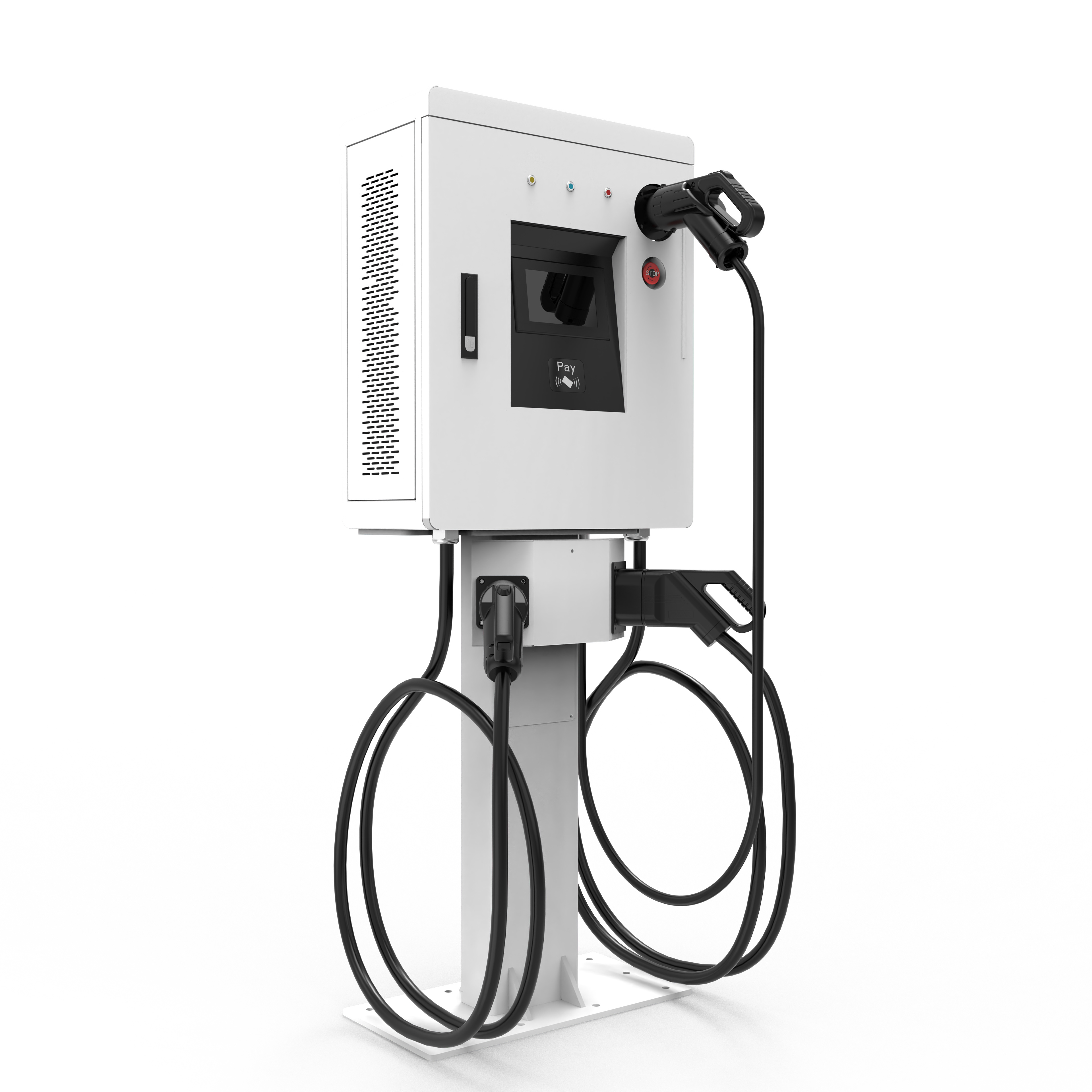

IP54 Wall Mounted Car Charging Station 30KW / 40KW Multiple AC DC EV Charger

IP54 Wall Mounted Car Charging Station 30KW / 40KW Multiple AC DC EV Charger

Description :

  • Payment system PNC, NAYAX, RFID, QR code optional.
  • Cable management system support.
  • DC adapters let every plug become flexible (CCS/GBT/CHAdeMO/NACS) to 100% for Utilization rate.
  • Firmware & Software remote update supported.
  • Global to door after service.
  • DC solar battery input and 380/480Vac input supported.
  • Split type customized design is coming.
  • Short circuit and over temperature protection.
  • We can offer OCPP server back-end management system.

IP54 Wall Mounted Car Charging Station 30KW / 40KW Multiple AC DC EV Charger
CCS BMW i3, VW e-golf & e-up, Jaguar ipace, Tesla model 3, Hyundai ioniq & kona, Audi e-tron, OPEL ampera e, Chevrolet spark, Geely TX electric Taxi, Ford focus.
CHAdeMO Nissan leaf & NV200, KIA soul, CITROEN C-Zero & Ber- lingo, Peugeot iOn, Mitsubishi i-Mev & outlander, Geely TX electric Taxi, Zero Motorcy- cles, Tesla Model S (need adapter)
GB/T BYD, BAIC, Chery, Geely, Aion S, MG, XiaoPeng, JAC, Zotype etc.
Tesla Tesla Model S,Tesla Model X,Tesla Model Y,Tesla Model 3.
Model 30KW 40KW
Ac input Rated input voltage 380V±15%
AC Input Connection 3P+N+PE
Max.input Current 50A@380V 65A@380V
Frequency 50/60 Hz
Efficiency 95%
Dc input Output voltage range 50-500VDC
Max.Output power 30 kW 40kW
Max.Output current 80A@375V,30A@100V 120A @333V 53A@750V
User interface HMI 7inch touch display (Android)RFID
Push Button Emergency stop button
Connector VPN/DNS/Clord,Wifi,RJ45,3g(GSM/CDMA),Modbus TCP,PLC
Package Dimension 850*313.5*1610mm
Weight 80kg 85kg



Environmental		 Operating temperature -20℃~+50℃,power derating from+50℃ and above
Humidness 5%~90%RH,non-condensing
Altitude 2000m
IP leve IP54//K10 Indoor/Outdoor
Machine Cable length 5M(CHAdeMO),5M(CCS),and 5M(GB/T),the cable length can be customized
Regulation Regulation EN61B51-1,JEVSG 105
Certifi catior CE,ROHS,TUV,CSA,UL,IEC
Charging protocol CHAdeMO 2.0/DIN 70121/OCPP 1.6(JSON or SOAP),ISO 15118
